S5300-16T16XY2Q

Product Overview

The S5300 Series Routing Switches (whose abbreviation is “S5300”) are high performance switches. S5300 supports multiple port types. S5300’s product position is to meet the requirements of next generation Enterprise, Data Center, Metro and HCI (Hyper-Converged Infrastructure) networks.

S5300 supports mainstream protocols and applications which can be conveniently deployed and managed.

The S5300 Series Switches currently includes following configurations: S5300-16T16XY2Q

Figure 1 S5300-16T16XY2Q Series

Features

Technical highlights

Ø Standard 1RU pizza-box solution

Ø Up to 752G bps switching capacity

Ø Cut-Through switching method

Ø Very low system power consumption

Ø L2/L3/Data Center capability

Ø Support NVGRE/ VXLAN/ GENEVE，Support Tunnel Routing & Bridging without limitation.

Ø Configurable profiles for different MAC/IP/Data Center distribution

Ø Up to 96K MAC and 56K IP Routing tables

Ø RJ45 Console port and Out-band RJ45 Eth Management port

Layer 2 Features

Ø Up to 96K L2 Forwarding Entries

Ø Jumbo Frames (9600 Bytes)

Ø 802.1d Spanning Tree Protocol

Ø 802.1w Rapid Spanning Tree Protocol

Ø 802.1s Multiple Spanning Tree Protocol

Ø 802.1ab Link Layer Discovery Protocol

Ø 802.3x Flow Control

Ø Storm Control

Ø MAC limit per port/rate limiting per port

Ø 802.1Q VLAN(4094 VID)

Ø Private VLANs

Ø Port/MAC based VLAN

Ø 802.1ad QinQ/VLAN Mapping

Ø 802.3ad Link Aggregation/LACP

Ø Multi-Chassis Link Aggregation (MLAG)

Layer 3 Features

Ø Up to 56K IPv4 Routes

Ø IPv4 standard support, ICMP, ARP

Ø VRF

Ø Support host route leaking cross VRFs

Ø RIP v1/v2

Ø OSPF

Ø BGP

Ø 64-way Equal Cost Multi-path Routing (ECMP)

Ø VRRP /VRRP v3

Ø Virtual ARP (VARP)

Ø IS-IS

Ø URPF

Ø IP Unnumbered

Multicast

Ø IGMP v1/v2/v3 snooping/ IGMP

Ø IGMP Fast Leave & Static Join/ IGMP proxy

Metro Features

Ø LDP

Ø MPLS Forwarding

Ø VPWS

Ø VPLS

Ø MPLS OAM

Ø MPLS Stats

Ø L2VPN/L3VPN

Ø MPLS ACL

Ø MPLS QoS

Data Center DCB Features

Ø Data Center TCP

Ø Per-Priority Flow Control (PFC)

Ø Data Center Bridging Extensions (DCBX)

Ø NVGRE, VXLAN, GENEVE

Ø Open API interfaces to achieve SDN

Ø EVPN

Ø IPFIX

Reliability Features

Ø ERPS (Ethernet Ring Protection Switching)

Ø ITU-T G.8031/Y.1342 ELPS protocol

Ø ITU-T G.8032/Y.1344 ERPS protocol

Ø Ethernet OAM: IEEE 802.1ag/Y.1731

Ø Link OAM IEEE802.1ah (EFM) support

QoS Features

Ø Up to 8 unicast queue, 4 multicast queue and 1 SPAN queue per port

Ø Strict priority queueing

Ø 802.1p based classification

Ø DSCP based classification and remarking

Ø Egress Rate Shaping/WRR

Ø Policers

Ø Rate limiting

Ø Support show used state of interface buffer

Security

Ø Centralized port-based and MAC-based 802.1x authentication/access accounting/keep alive

Ø Standard and extended ACL / Global ACL

Ø MAC port binding, port isolation, private VLAN, MAC security and MAC filtering

Ø DoS attack and CPU traffic protection

Ø RADIUS

Ø TACACS+

Ø COPP(Control Plane Protect)

Advanced Monitoring and Provisioning

Ø CPU Mirror

Ø Elephant Flow Detection(EFD)

Ø Latency monitor *

Ø Buffer monitor *

Ø Microburst Detection *

Network Management

Ø SmartConfig

Ø 100/1000 Management Port

Ø RS-232 Serial Console Port

Ø USB Port

Ø Telnet and SSHv1/v2

Ø AAA

Ø TFTP/FTP

Ø SNMPv1/v2/v3

Ø Syslog

Ø Role based Access Control

Ø User block feature

Ø Industry Standard CLI

Ø Blue Beacon LED for system identification

Ø WEB UI

Notes：Features remarked with “*” are in roadmap.

Applications

S5300 with 1GE + 10GE/40GE/100GE ports are suitable for HCI (Hyper-Converged Infrastructure) networks. Using 1GE ports for management network and using 10G/40G/100G ports for data traffic network:

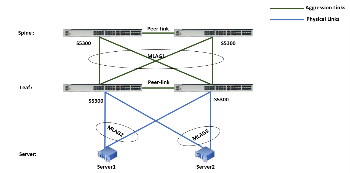

Figure 2 HCI Networks with S5300

S5300 series provide 1GE/2.5GE/10GE/25GE/40GE/100GE ports for Access or Aggregation switches:

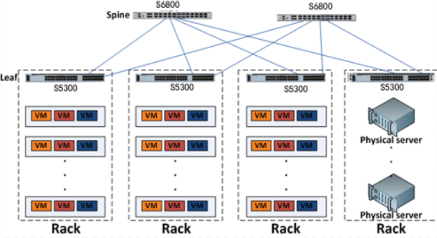

Figure 3 Data Center Servers Access Network with S5300

Ordering Information

Product

Description

S5300-16T16XY2Q

Standard 1U 19'' rack mountable

16 x 1GE Base-T Ports

8 x 10GE SFP+ Ports

8 x 25GE SFP28 Ports

2 x 40GE QSFP+ Ports

Dual modular power supply

Front-to-Rear/Rear-to-Front Airflow, Fixed Fan

S5300-16T16XY2Q Hardware description

1. Basic
Product Name		S5300-16T16XY2Q
Product Positioning		Data Center TOR access, Enterprise / Metro / HCI (Hyper-Converged Infrastructure) network access or aggregation
Switching Method		Store and Forwarding / Cut Through
Packets Buffer		9MB
CPU Model		SOC(Dual core, ARM A53)
Flash		8GB(eMMC)
Memory		2GB
Hardware Configuration	Main Board Spec	16 x 1GE Base-T Ports 8 x 10GE SFP+ Ports 8 x 25GE SFP28 Ports 2 x 40GE QSFP+ Ports
	Uplink Network Sub Card	Not Support
	Console Type	1 RJ-45 Console port located at the left side of front panel
	Outband Eth Management Port	1 RJ-45 out-of-band management port located at the left side of front panel
	Inband Eth Management Port	Support
	USB Ports	1 Type-A USB port located at the left side of front panel
2. Performance Spec
Switching Capacity	Switching Capability	752 Gbps
	Throughput	476.16 Mpps
	Latency	660 ns
3. Hardware and Software Description
Hardware Architecure		Standard 1U 19'' rack mountable
Software Upgrade Method		TFTP/FTP
Service interruption time when reboot system for software update		Less Than 120s
4. The Power Supply and Power Requirements
Type of Power Supply	AC	Support
	DC	Support
Power Supply Range	AC	Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz
	DC	Operating Voltage: -48V ~ -60V
	HVDC	Not Support
Double Power Input		Support
Power Supply Module Pluggable		Support
Typical Power Draw		48W
Max Power Draw		67W
PoE Power Budget		-
5. Overcurrent and overvoltage protection
Overcurrent/Overvoltage Protection		Support
Surge Protection Level		2 KV
6. Others
Hardware Size (H×W×D) in.		4.4 x 44.2 x 37.8 cm (1.7 x 17.4 x 14.9 in.)
Weight (kg)		6.10KG
		(Include Two PSU)
Cooling Mode		Fan Cooling
Airflow Option		Front-to-Rear/Rear-to-Front Airflow
Quantity of Fans		3
Fan Module Pluggable		Not Support (Fixed Fan)
Fan Module Intelligent Speed Control		Support
Operating Temperature Range		0ºC ~ 45ºC
MTBF(Hour)		>70080
MTBF(Year)		>8

	Feature List			● Support ○ Unsupport
Feature			Description	S5300(eb)	S5300(es)	S5300(ms)	S5300(ma)	Note
Type	Sub type	Feature	Description	S5300(eb)	S5300(es)	S5300(ms)	S5300(ma)	Note
Ethernet basic features	Ethernet	Interface	Interface types/Duplex modes/ Auto-negotiation/Auto-adaption	●	●	●	●
			Ethernet interface operating rates	●	●	●	●
			Jumbo frame	●	●	●	●
			Port-xconnect	●	●	●	●
		Flow-control	Flow-control tx/rx	●	●	●	●
		Storm-control	Port based storm-control	●	●	●	●
		Storm-control	VLAN based storm-control	○	○	●	●
		Port-block	Port-block(know-unicast/unknow-unicast/know-multicast/unknow- multicast/broadcast)	●	●	●	●
		Port-isolate	L2/L3/All port-isolate	●	●	●	●
		Port-isolate	Uni-direction isolate	●	●	●	●
		L2 protocol tunnel	L2 Protocol Tunnel(support CDP/CFM/DOT1X/LLDP/SLOW-PROTO/STP/VTP)	●	●	●	●
		Forward mode	Store-and-forward	●	●	●	●
		Forward mode	Cut-through	●	●	●	●
	VLAN	VLAN access mode	Access/Trunk	●	●	●	●
		VLAN access mode	Default VLAN	●	●	●	●
		VLAN classification	VLAN classification (port based/mac based/ip based/protocal based)	●	●	●	●
		QinQ	Basic QinQ	●	●	●	●
			Selective QinQ	●	●	●	●
			VLAN Mapping(1:1 VLAN Translation)	●	●	●	●
			VLAN Mapping(N:1 VLAN Translation)	●	●	●	●
		VLAN statistics	VLAN Statistics	●	●	●	●
		Private VLAN	Private VLAN	●	●	●	●
		Voice VLAN	Voice VLAN	●	●	●	●
		Guest VLAN	Guest VLAN	●	●	●	●
	MAC	MAC address table	Automatic learning and aging of MAC addresses	●	●	●	●
			Clear FDB based on PORT+VLAN	●	●	●	●
			Hardware learning	●	●	●	●
			Static and dynamic MAC address entries	●	●	●	●
			Blackhole MAC (Support global and per-VLAN configuration)	●	●	●	●
		MAC flapping detect	MAC flapping detect	●	●	●	●
		Port bridge	Port Bridge	●	●	●	●
	LAG	Link aggregation	Static-LAG & LACP	●	●	●	●
			Static load balance（SLB）	●	●	●	●
			Dynamic load balance（DLB）	●	●	●	●
			Round-robin load balance（RR）	●	●	●	●
			LAG self-healing	●	●	●	●
			Weighted link aggregation	●	●	●	●
Ethernet ring protection features	xSTP	STP	Spanning-tree protocol	●	●	●	●
		RSTP	Rapid spanning-tree protocol	●	●	●	●
		MSTP	Multi-instance spanning-tree protocol	●	●	●	●
		Spanning-tree protocol protection	BPDU filter/guard	●	●	●	●
			Root guard	●	●	●	●
			Loop guard	●	●	●	●
			Anti TC-BPDU attack	●	●	●	●
	ERPS	ERPS	Single ERPS ring	●	●	●	●
			Tangent ERPS rings	●	●	●	●
			Intersecting ERPS rings	●	●	●	●
			Compatible with RRPP	●	●	●	●
	G.8031	G.8031	G.8031 Ethernet linear network protection	○	○	●	●
	G.8032	G.8032	G.8032 v1/v2	○	○	●	●
			Single ring	○	○	●	●
			Sub ring	○	○	●	●
	Loopback detect	Loopback detect	Loopback-detection	●	●	●	●
Layer2 multicast	Layer2 multicast	IGMP snooping	IGMPv1/v2/v3 snooping	●	●	●	●
			Fast leave	●	●	●	●
			Static IGMP snooping group	●	●	●	●
		MVR	MVR (Multicast VLAN registration)	●	●	●	●
IPv4 forwarding	ARP	ARP	Static and dynamic ARP entries	●	●	●	●
			Aging of ARP entries	●	●	●	●
			Gratuitous ARP	●	●	●	●
		ARP proxy	Basic ARP-proxy	●	●	●	●
		ARP proxy	Local ARP-proxy	●	●	●	●
	IPv4 unicast routing	IPv4 static routes	IPv4 static routes	●	●	●	●
			Blackhole routes	●	●	●	●
			Co-work with IP SLA	●	●	●	●
			Virtual routing and forwarding (VRF)	●	●	●	●
			uRPF check	●	●	●	●
		RIP	RIP v1/v2	●	●	●	●
		OSPFv2	OSPF v2	○	●	●	●
		IS-IS	IS-IS	○	●	●	●
		IS-IS	IS-IS Extensions for segment-routing	○	○	○	●
		BGP	IBGP	○	●	●	●
		BGP	EBGP	○	●	●	●
		Route policy	Route-map	●	●	●	●
		Route policy	IPv4 prefix-list	●	●	●	●
		PBR	Policy-based routing (PBR)	●	●	●	●
		ICMP	ICMP redirect	●	●	●	●
		ICMP	ICMP unreachables	●	●	●	●
		ECMP	ECMP(SLB)	●	●	●	●
			ECMP(DLB)	●	●	●	●
			ECMP(RR)	●	●	●	●
			ECMP self-healing	●	●	●	●
		IP unnumbered	IP unnumbered	●	●	●	●
	IPv4 multicast routing	IGMP	IGMP v1/v2/v3	●	●	●	●
			IGMP-proxy	●	●	●	●
			IGMP SSM mapping	●	●	●	●
		PIM	PIM-SM	○	●	●	●
			PIM-SSM	○	●	○	●
			PIM-DM	○	●	●	●
IPv6 forwarding	IPv6 basic protocol	ICMPv6	ICMPv6	○	●	●	●
		NDP	NDP	○	●	●	●
		PMTU	PMTU	○	●	●	●
	IPv6 unicast routing	IPv6 static routes	IPv6 static routes	○	●	●	●
		IPv6 static routes	IPv6 blackhole routes	●	●	●	●
		RIPng	RIPng	○	●	●	●
		BGP4+	BGP4+	○	●	●	●
		OSPFv3	OSPF v3	○	●	●	●
		IS-IS	IS-IS	○	●	●	●
		VRRP v3	VRRP v3	●	●	●	●
	IPv6 multicast routing	MLD v1/v2	MLD v1/v2	○	●	●	●
		MLD v1/v2 snooping	MLD v1/v2 snooping	○	●	●	●
		MVR6	MVR6	○	●	●	●
		PIM-SM v6	PIM-SM v6	○	●	●	●
	IP tunnel	IPv6 over IPv4 tunnel	IPv6 over IPv4 tunnel	○	●	●	●
		6to4 tunnel	6to4 tunnel	○	●	●	●
		ISATAP tunnel	ISATAP tunnel	○	●	●	●
	IPv6 service	DHCPv6	DHCPv6 relay	○	●	●	●
		DHCPv6	DHCPv6 snooping	○	●	●	●
		IPv6 route policy	IPv6 Prefix-list	○	●	●	●
			BFD for Static route	○	●	●	●
			BFD for OSPFv2	○	●	●	●

Device reliability features

BFD

BFD

BFD for IS-IS

○

●

●

●

BFD for BGP

○

●

●

●

BFD for VRRP/Track

○

●

●

●

BFD for PBR

○

●

●

●

VRRP

VRRP

VRRP

●

●

●

●

Track for VRRP

●

●

●

●

Smart link

Smart link

Multi-instance

●

●

●

●

Load balance

●

●

●

●

Multi-link

●

●

●

●

Monitor-link

●

●

●

●

MLAG

MLAG

MLAG basic

●

●

●

●

MLAG orphan port

●

●

●

●

Ethernet OAM

EFM

EFM (802.3ah)

Auto detection

○

○

●

●

Network fault detetion

○

○

●

●

Network fault handle

○

○

●

●

Remote loopback

○

○

●

●

CFM

CFM (802.1ag)

Hardware CCM detect

○

○

●

●

MAC Ping

○

○

●

●

MAC Trace

○

○

●

●

Y.1731

Y.1731

Latency and jitter measure

○

○

●

●

QoS features

QoS

Traffic classification

Traffic classification based on COS/DSCP (Simple classification)

●

●

●

●

Traffic classification based on ACL (Complex classification)

●

●

●

●

Traffic classification based on inner header of the tunnel packets

●

●

●

●

Traffic behaviors

Queue scheduling

●

●

●

●

Remark the priority fields(COS/DSCP) of the packet based on ACL

●

●

●

●

Remark the priority fields(COS/DSCP) of the packet based on table map

●

●

●

●

Flow redirection

●

●

●

●

Flow mirror

●

●

●

●

Traffic policing

Traffic policing based on direction(in/out) of port

●

●

●

●

Traffic policing based on direction(in/out) of VLAN

●

●

●

●

Traffic policing based on direction(in/out) of flow

●

●

●

●

Traffic policing based on direction(in/out) of aggregated flow

●

●

●

●

Traffic shaping

Queue based traffic shaping

●

●

●

●

Port based traffic shaping

●

●

●

●

Congestion management

SP（Strict priority）scheduling

●

●

●

●

WDRR（Weighted deficit round robin）scheduling

●

●

●

●

SP + WDRR mixed scheduling

●

●

●

●

Congestion avoidance

Tail drop (TD)

●

●

●

●

Weighted random early detection (WRED)

●

●

●

●

Traffic statistics

Packet counts and bytes statistics based on traffic classification

●

●

●

●

Packet counts and bytes statistics based on the color after traffic policing

●

●

●

●

Forwarded and discarded packet counts and bytes statistics

●

●

●

●

ECN (Explicit congestion notification)

ECN tags based on tail drop

○

○

●

●

ECN tags based on WRED

○

○

●

●

ECN tags based on shape rate

○

○

●

●

Data center

VARP

Virtual gateway

VARP(Virtual-ARP)

●

●

●

●

VARP subnet

●

●

●

●

Tunnel

VxLAN

Manual configure VxLAN tunnel

○

○

●

●

VxLAN distributed gateway

○

○

●

●

VxLAN active-active access

○

○

●

●

Interconnect across data centers based on VxLAN

○

○

●

●

L2 protocol packet passthrough

○

○

●

●

Edit DSCP in VxLAN outer header

○

○

●

●

Edit ethertype in VxLAN inner header

○

○

●

●

BGP EVPN

○

○

○

●

Support to enable/disable overlay split horizon per-VNI

○

○

●

●

GRE tunnel

GRE tunnel

○

○

●

●

NVGRE tunnel

NVGRE tunnel

○

○

●

●

GENEVE tunnel

GENEVE tunnel

○

○

●

●

DCB

DCBX

LLDP support DCBX TLV

○

○

●

●

PFC

PFC

○

○

●

●

Metro features

IPRAN

LDP

LDP

○

○

○

●

MPLS forwarding

MPLS forwarding

○

○

○

●

VPWS

VPWS

○

○

○

●

VPLS

VPLS

○

○

○

●

MPLS OAM

MPLS OAM

○

○

○

●

MPLS statistics

MPLS statistics

○

○

○

●

L2VPN

L2VPN

○

○

○

●

L3VPN

L3VPN

○

○

○

●

ACL

MPLS ACL

○

○

○

●

QoS

MPLS QoS

○

○

○

●

SR

MPLS-based segment-routing

○

○

○

●

Security and management

System security

SSH

SSH v1/v2

●

●

●

●

RSA Key generation

●

●

●

●

RADIUS

RADIUS

●

●

●

●

TACAS+

TACAS+

●

●

●

●

AAA

Authentication

●

●

●

●

Authorization

●

●

●

●

Accounting

●

●

●

●

Dot1x

Port based dot1x

●

●

●

●

MAC based dot1x

●

●

●

●

Guest VLAN

●

●

●

●

ACL

MAC/IP ACL

●

●

●

●

Basic mode ACL

●

●

●

●

Port-group ACL

●

●

●

●

VLAN-group ACL

●

●

●

●

IPv6 ACL

●

●

●

●

ACL UDF

●

●

●

●

Global ACL

●

●

●

●

Time range

●

●

●

●

ARP inspection

ARP inspection

●

●

●

●

IP source guard

IP source guard

●

●

●

●

Port Security

Limitation on MAC address learning on interface

●

●

●

●

VLAN Security

Limitation on MAC address learning on VLAN

●

●

●

●

Control plane policy (CoPP)

Black list / Wihte list

●

●

●

●

Rate limit

●

●

●

●

CPU traffic limit

CPU traffic limit

●

●

●

●

Prevent DDOS attack

Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood)

●

●

●

●

Login filter

Telnet/SSH ACL filtering

●

●

●

●

Telnet/SSH IPv6 ACL filtering

●

●

●

●

Link flapping detection

Link flapping detection

●

●

●

●

Network management

DHCP

DHCP server

●

●

●

●

DHCP relay

●

●

●

●

DHCP snooping

●

●

●

●

DHCP client

●

●

●

●

DHCP option 82

●

●

●

●

DHCP option 252

●

●

●

●

RMON

RMON

●

●

●

●

sFlow

sFlow v4/v5

●

●

●

●

IP SLA

Support IPv4

●

●

●

●

Support IPv6

●

●

●

●

Support Track

●

●

●

●

IPFIX

IPFIX

○

○

●

●

Latency/Buffer monitor

Latency monitor

○

○

●

●

Buffer monitor

○

○

●

●

EFD

Elephant flow detection

●

●

●

●

NTP

Network time protocol (NTP)

●

●

●

●

PTP (IEEE 1588 Precise time protocal)

Transparent clock (TC)

○

○

○

●

Errdisable

Errdisable detection and recovery

●

●

●

●

DNS

Static DNS Client

●

●

●

●

LLDP

LLDP

●

●

●

●

Configuration and maintenance

Terminal services

Command line interface

Configurations through CLI (Command line interface)

●

●

●

●

Help information

Banner configuration

●

●

●

●

Help information in English

●

●

●

●

Terminal service

Vty terminal service

●

●

●

●

Console terminal service

●

●

●

●

Configuration management

Management interface

Inband management interface and configuration

●

●

●

●

Outband management interface and configuration

●

●

●

●

User privilege management

Privileged user proirity and privileged commands

●

●

●

●

SNMP

Network management based on SNMP v1/v2c/v3

●

●

●

●

Public and private MIB

●

●

●

●

Public and private trap

●

●

●

●

WEB

Configuration and management based on WEB UI

●

●

●

●

RPC-API

Configuration and management based on RPC-API

●

●

●

●

Smart config

Smart config(Automatically configuration when system start)

●

●

●

●

OVSDB

Configuration and management based on OVSDB

●

●

●

●

system profile configuration

Change the system specifications by choose different STM profiles

●

●

●

●

License control

Feature configuration based on license

●

●

●

●

Restore factory default

configuration

Restore factory default configuration

●

●

●

●

File system

File system

File system(support directory and file management)

●

●

●

●

Upload and download

Upload and download files through FTP or TFTP

●

●

●

●

Upload and download files through SCP

●

●

●

●

Upload and download files through Xmodem

●

●

●

●

Debugging and maintenance

Debug

Per-module debug features

●

●

●

●

ICMP debug

●

●

●

●

BHM

Software process monitor: Beat heart monitor

●

●

●

●

Hardware watch dog

●

●

●

●

Log & alarm

CPU usage display and alarm

●

●

●

●

Memory usage display and alarm

●

●

●

●

Device temperature, PSU, FAN status display and alarm

●

●

●

●

User operation logs

●

●

●

●

Management of logs, alarms, and debugging information

●

●

●

●

VCT

Virtual cable test

●

●

●

●

system diagnostics

Detailed diagnostic-information collection

●

●

●

●

Reboot

Manual reboot

●

●

●

●

Schedule reboot

●

●

●

●

Reboot Information logging

●

●

●

●

Network diagnostics

Ping

●

●

●

●

IPv6 Ping

●

●

●

●

Traceroute

●

●

●

●

Log & alarm

Support CPU usage display

●

●

●

●

Support Memory usage display and alarm

●

●

●

●

Support CPU/Memory histroy log display

●

●

●

●

Support Device temperature、PSU、FAN status display and alarm

●

●

●

●

Support User operation logs

●

●

●

●

Support Management of logs, alarms, and debugging information

●

●

●

●

Support Interface bandwidth usage display and alarm

●

●

●

●

Support Logging server with IPv4 Address

●

●

●

●

Support Logging server with IPv6 Address

●

●

●

●

Mirror

Port mirror

●

●

●

●

Flow mirror

●

●

●

●

Remote mirror

●

●

●

●

Multi-destination mirror(m:n)

●

●

●

●

Use CPU as mirror source

●

●

●

●

Use CPU as mirror destination and analyze packet

●

●

●

●

ERSPAN

●

●

●

●

CPU statistics

To CPU / From CPU packets statistics

●

●

●

●

L2 Ping

Layer2 network connectivity detection - L2Ping (MAC Ping/Trace)

●

●

●

●

UDLD

Unidirectional link detection

●

●

●

●

Unidirectional

Unidirectional forwarding of the fiber

●

●

●

●

Loopback

Port loopback

●

●

●

●

Hardware loopback (Internal/External)

●

●

●

●

System time

Time configuration

●

●

●

●

Timezone

●

●

●

●

Version upgrade

System soft ware upgrade

Upgrade with the local image file

●

●

●

●

Upgrade with the remote TFTP server

●

●

●

●

Uboot upgrade

Online upgrade uboot

●

●

●

●

Performance & Spec Table

Features

S5300 (V7.4)

Note

Class

Feature

Description

Default Profile

Extended-buffer

IPv6 Profile

Layer3 Profile

Mpls Profile

Ethernet basic

Jumbo frame

Maximum jumbo frame size

9600

9600

9600

9600

9600

Unicast MAC

MAC address capacity

98304

12288

98304

98304

98304

MAC learning rate (SW)

> 4000pps

MAC learning rate (HW)

> 10Gbps

Blackhole MAC address capacity

128

Multicast MAC

MAC address capacity

2048

1024

1024

1024

2048

VLAN

VLAN IDs

4094

VLAN instances

4094

VLANs to enable statistics

256

VLAN mapping

Maximum mapping table

64

Maximum rules number

1024

EVC

Maximum EVC number

4094

Link aggregation (Static & LACP)

Maximum member number per group

128

Maximum group number

64

Load balance key mode

static/dlb/rr/resilient/self-healing

Convergence time

< 50ms

VLAN classification

Maximum rule number

4096

Maximum group number

1

MAC based rule capacity

512

512

384

512

512

IPv4 based rule capacity

448

448

256

1024

512

IPv6 based rule capacity

32

32

256

0

0

Protocal based rule capacity

7

Ethernet ring protection

STP

Convergence time

< 30s

RSTP

Convergence time

< 1s

MSTP

MSTP instance number

64

Convergence time

< 1s

ERPS

Maximum domain number

16

Ring number

1 Primary ring/domain

2 Sub ring/domain

Maximum protection instance number

per ring

64

Switchover time

< 50 ms

G.8031

Group number

256

256

0

0

16

Switchover time

< 50 ms

G.8032

Rings

128

128

0

0

16

Maximum member ports per Ring

256

256

0

0

32

Switchover time

< 50 ms

Ethernet OAM

CFM(802.1ag)

Maximum session number

512

Maximum domain number

8

CCM interval types

7

CCM minimum interval

3.3ms

Maximum down MEP number

1024

Maximum up MEP number

1024

Maximum LMEP number

1024

IPv4 unicast

ARP

ARP capacity

12288

4096

6144

16384

12288

IPv4

FIB

57344

28672

12288

57344

57344

ECMP

ECMP group

240 (Share with IPv6)

PBR

Policy route map

64

Policy based routing ACE

256

256

128

256

128

OSPF

Maximum static neighbors

256

Maximum summary address

2048

IPv4 multicast

IPMC

Multicast routing table

2048

512

1024

2048

1024

Multicast routing downstream interfaces

4096

1024

2048

5120

2048

IGMP snooping

Maximum groups number

2048

Maximum member number

8192

MVR

Maximum group number

2048

512

1024

2048

1024

Maximum member number

4096

1024

2048

4096

2048

IPv6 unicast

Host route

NDP capacity

2048

1024

4096

0

2048

IPv6

FIBv6

4096

1024

6144

0

1024

ECMP group

240 (Share with IPv4)

0

240

IPv6 multicast

IPMC

Multicast routing table

256

256

512

0

0

Number of interfaces that support

multicast routing table

512

512

1024

0

0

MVR v6

Maximum entry number

256

0

512

0

0

Maximum member number

512

0

1024

0

0

IP tunnel

IP tunnel

Tunnel peer capacity

8

QoS

Per-port queue number

Unicast queue

8

Multicast queue

1

Monitor queue

1

Packet buffer

System packet buffer capacity

4.5MByte

9MByte

4.5MByte

4.5MByte

4.5MByte

Granularity

Policer granularity

0~2M: 10K

2M~100M: 40K

100M~1G: 80K

1G~2G: 120K

2G~4G: 250K

4G~10G: 500K

Queue shape granularity

Port shape granularity

10k

Flow entry

Ingress port QoS ipv4 flow entries

1532

Ingress port QoS ipv6 flow entries

Ingress port QoS flow stats entries

128

ACL

IPv4 ACL

Ingress port acl for IPv4

2926

2976

Ingress VLAN acl for IPv4

Egress port acl for IPv4

878

928

Engress VLAN acl for IPv4

IPv6 ACL

Ingress port acl for IPv6

2926

0

0

Ingress VLAN acl for IPv6

0

0

Egress port acl for IPv6

878

0

0

Egress VLAN acl for IPv6

0

0

ACL flow stats

Ingress acl flow stats entries

1022

Engress acl flow stats entries

1023

CoPP

CoPP rules

249

250

CoPP flow stats entries

249

250

UDF

UDF rules

256

UDF flow stats entries

64

Security

IP source guard

IPv4 maximum rules number

768

512

512

512

IPv6 maximum rules number

64

128

0

0

MAC based 802.1X

Maximum entries

512

512

512

512

512

DHCP-snooping

Maximum bound entry

4096

IPFIX

IPFIX

Ingress IPFIX entries

8192

Egress IPFIX entries

8192

Ingress IPFIX resource

512

Egress IPFIX resource

512

Reliability

BFD

Maximum session number

share 128

S-BFD

Maximum session number

VRRP

Maximum group number

255

Smart link

Maximum group number

16

Maximum instance number

64

Switchover time

<50ms

Monitor link

Maximum group number

16

Maximum up-link number per group

24

Maximum down-link number per group

24

MLAG

Maximum MLAG group number

63

Data center

VARP

Virtual IP number per Port

15

VXLAN

VXLAN tunnel

6144

4088

2040

VNI

2000

2000

2000

2000

1000

VTEP peer

1024

1024

1024

1024

256
